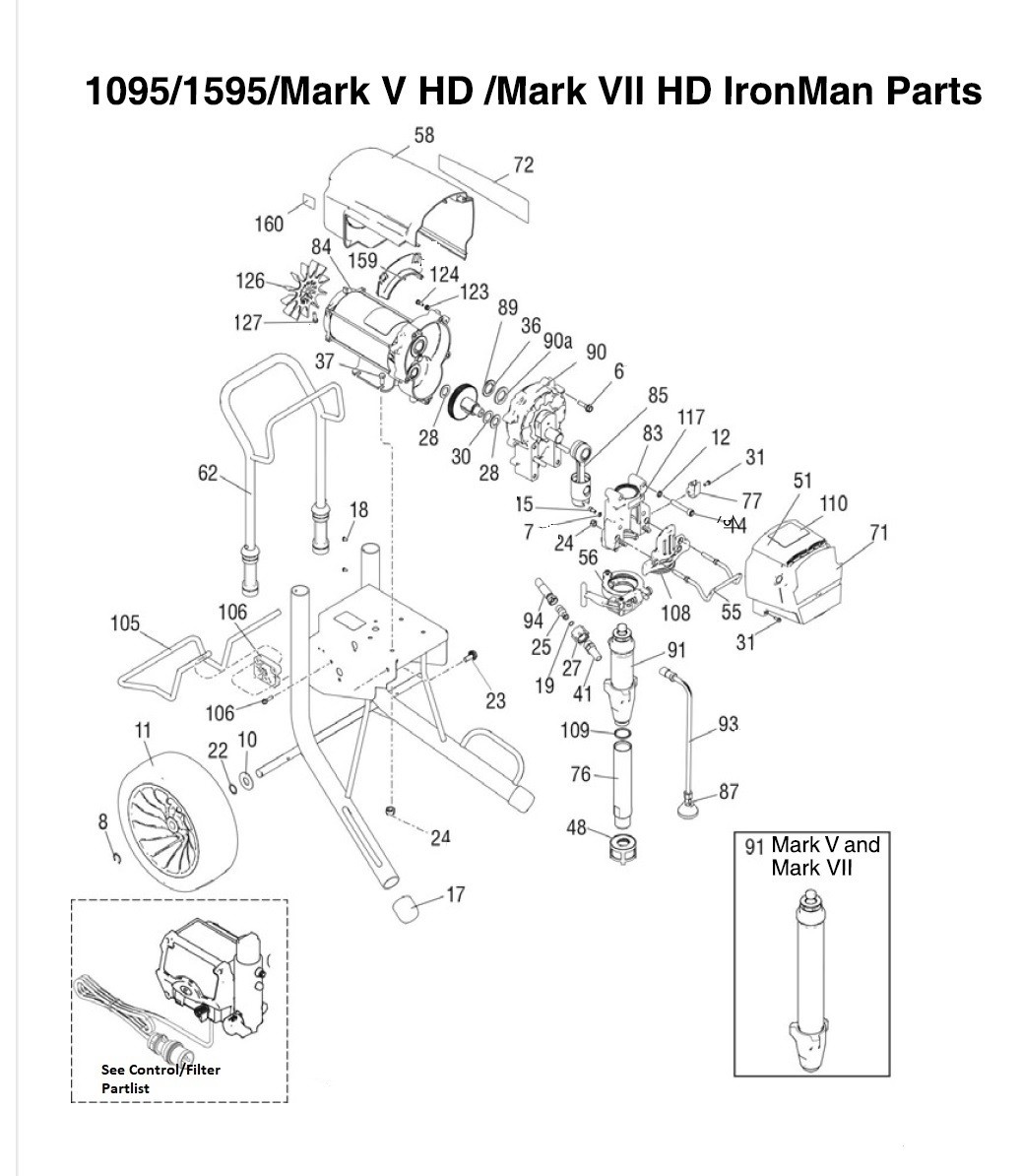

Click a marker on the diagram to see that part's details
6
Item
Graco 15C753 Torx Hex Washer Head Machine Screw
15C753
633955030534
The Graco 15C753 Torx Hex Washer Head Machine Screw is a durable fastener with a Torx drive and hex ...
6
7
Item
Graco 105510 Spring Lock Washer (Hi-Collar)
105510
633955507043
The Graco 105510 Spring Lock Washer (Hi-Collar) provides secure fastening in high-vibration applicat...
7
8
Item
Graco 15E891 Axle Clip
15E891
633955088597
The Graco 15E891 Axle Clip is a genuine OEM retaining clip that locks the wheel securely onto the sp...
8
10
Item
Graco 156306 Flat Washer
156306
633955237209
The Graco 156306 Flat Washer is a genuine OEM hardware part designed for stability and secure assemb...
10
11
Item
Graco 17E687 13-Inch Polyurethane Tire Black
17E687
755652829485
Graco 17E687 13‑inch Polyurethane Tire — strong and wear‑resistant tire for sprayer carts an...
11
12
Item
-1.jpg)
Graco 106115 Lock Spring Washer (Hi-Collar)
106115
633955618664
Maintain secure fastener connections with the Graco 106115 Hi‑Collar Lock Spring Washer, designed ...
12
14
Item
Graco 17E789 Stainless Steel Cap Screw 3/8 x 2.25
17E789
755652813507
The Graco 17E789 SCH Cap Screw offers reliable fastening and long-lasting performance for your Graco...
14
15
Item
Graco 101550 SCH Cap Screw
101550
633955502000
Graco 101550 SCH Cap Screw is a genuine OEM fastener used in multiple Graco sprayers for securing cr...
15
17
Item
Graco 276974 Leg Cap
276974
633955044432
Protective leg cap designed for Graco airless sprayer frames, preventing floor contact damage while ...
17
19
Item
Graco 107505 O-Ring Packing
107505
633955305229
Ensure leak-free operation and maintain consistent pressure in Graco sprayers with this OEM O-Ring P...
19
22
Item
Graco 116038 Wave Spring Washer
116038
633955947979
The Graco 116038 Wave Spring Washer is a genuine OEM component designed to maintain tension and redu...
22
23
Item
Graco 117791 Tri Lobe Cap Screw
117791
633955025677
Graco 117791 Tri Lobe Cap Screw provides secure, leak-free fastening for Graco airless and texture s...
23
24
Item
Graco 111040 Nylock lock nut
111040
633955382473
The Graco 111040 Nylock Lock Nut is a genuine OEM fastener designed to prevent loosening from vibrat...
24
25
Item
Graco 16X833 Quick Disconnect Fitting 3/8 NPSM
16X833
633955678309
The Graco 16X833 Quick Disconnect Fitting 3/8 NPSM provides fast, tool-free hose and gun changes for...
25
27
Item
Graco 120583 Hand Nut
120583
633955231368
The Graco 120583 Hand Nut ensures a secure, leak-free connection for suction tubes on high-pressure ...
27
28
Item
Graco 114672 Thrust Washer
114672
633955886070
The Graco 114672 Thrust Washer ensures smooth rotation and stabilizes critical components in Graco a...
28
30
Item
Graco 114699 Thrust Washer
114699
633955875463
The Graco 114699 Thrust Washer stabilizes rotating parts in Graco airless sprayers and proportioners...
30
31
Item
Graco 118444 Hex Washer Head Machine Screw
118444
633955028999
Secure critical components in select Graco sprayers with the 118444 Hex Washer Head Machine Screw, e...
31
36
Item
Graco 116192 Thrust Washer
116192
633955698307
OEM Graco thrust washer (Part #116192) — crucial load‑bearing washer for gear/drive assemblies i...
36
37
Item
Graco 100057 Screw
100057
633955316812
The Graco 100057 Screw is a genuine OEM hex head cap screw designed for secure fastening in Graco ai...
37
41
Item
Graco 16Y579 Quick Detach Pump Fitting
16Y579
633955683983
The Graco 16Y579 Quick Detach Pump Fitting provides a fast, secure connection for GMAX-series spraye...
41
48
Item
Graco 15V573 Crushproof Inlet Strainer – 1 inch Threaded
15V573
633955416550
Graco 15V573 Crushproof Inlet Strainer (1″ threaded) is a durable, high-flow filter built for prof...
48
−48%
Graco
Graco 15V573 Crushproof Inlet Strainer – 1 inch Threaded
Part #: 15V573
$30.00
$57.25
Save $27.25
51
Item
Graco 24V024 Front Cover Repair Kit
24V024
633955000827
Repair kit restores the front cover assembly on compatible Graco airless sprayers, helping maintain ...
51
55
Item
Graco 16C457 Pail Hanger
16C457
633955570030
The Graco 16C457 Pail Hanger is a genuine OEM part designed to securely hold your paint pail in plac...
55
56
Item
Graco 16X324 Large Pump Clamp
16X324
633955682061
The Graco 16X324 Pump Large Clamp securely holds the pump assembly in place on large-frame Graco spr...
56
58
Item
Graco 287282 Motor Shield Repair Kit
287282
633955035331
Graco 287282 Motor Shield Repair Kit is an OEM protective cover that shields the motor from dust, ov...
58
62
Item
Graco 24Y428 Frame
24Y428
755652285014
The Graco 24Y428 Frame is a genuine OEM cart frame that supports heavy‑duty Hi‑Boy Graco sprayer...
62
71
Item
Graco 17E732 Front Brand Label for Ultramax II 1095
17E732
755652835493
OEM *Graco* side label replacement for airless sprayer panels — restores correct side identifica...
71
72
Item
Graco 17E733 Side Label
17E733
755652835202
The Graco 17E733 Side Label is a genuine OEM branding sticker designed to identify the sprayer model...
72
76
Item
Graco 248215 Intake Tube
248215
633955047495
Graco 248215 Intake Tube is a genuine OEM replacement component designed to ensure proper fluid inta...
76
77
Item
Graco 16X203 Drain Line Clip
16X203
633955569058
The Graco 16X203 Drain Line Clip securely holds the drain hose in place during priming and cleaning,...
77
83
Item
Graco 24V088 Bearing Housing Repair Kit
24V088
633955376557
The Graco 24V088 Bearing Housing Repair Kit is a genuine OEM repair assembly for high‑performance ...
83
84
Item

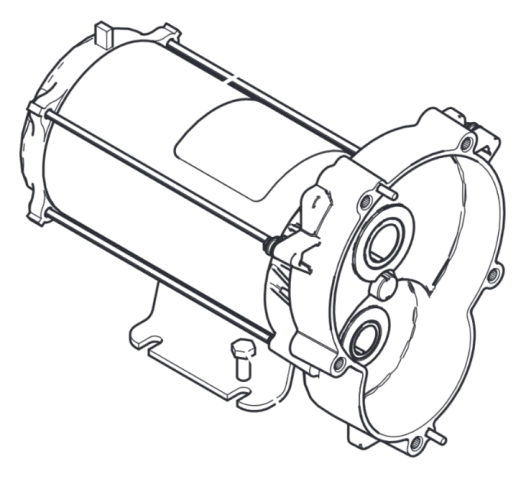

Graco 257187 C104 Motor Repair Kit
257187
633955473287
Graco 257187 Motor Repair Kit (C104) is a genuine OEM solution designed to restore full motor power ...
84
85
Item
Graco 24V085 Connecting Rod Repair Kit
24V085
633955394506
Graco 24V085 Connecting Rod Repair Kit – Built for Reliable Restoration
Graco 24V085 Connecting R...
85
87
Item
Graco 241920 Threaded Deflector
241920
633955910379
241920 Threaded Deflector directs fluid during priming or bypass operations, reducing splatter and k...
87
89
Item
Graco 287290 Combination Gear
287290
633955040090
The Graco 287290 Combination Gear is an internal drive component that transfers motor power to the p...
89
90A
Item
Graco 194173 Thrust Washer
194173
633955886179
The Graco 194173 Thrust Washer is an OEM‑grade sealing/spacer component used to ensure tight joint...
90A
90
Item

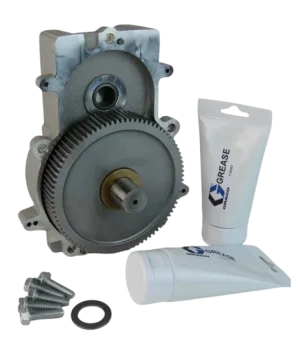

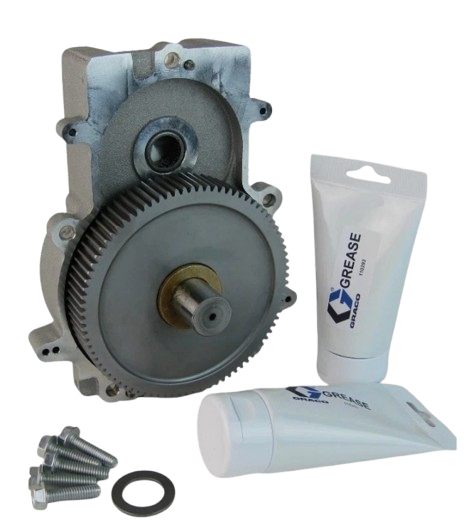

Graco 287294 Drive Housing Repair Kit
287294
633955041592
The Graco 287294 Drive Housing Repair Kit restores the drive system that transfers motor power to th...
90
91
Item
Graco 17H826 Endurance Vortex MaxLife Extreme Piston Pump
17H826
755652850540
Graco 17H826 Endurance Vortex MaxLife Extreme Piston Pump is engineered for maximum durability and p...
91
−16%
Graco
Graco 17H826 Endurance Vortex MaxLife Extreme Piston Pump
Part #: 17H826
$1,831.20
$2,180.00
Save $348.80
93
Item
Graco 244240 Return Hose Assembly
244240
633955963597
Graco 244240 Hi Return Line Repair Kit is an OEM return hose assembly designed for Hi-Boy sprayers t...
93
94
Item
Graco 16X904 3/8-Inch ID Coupled Hose
16X904
633955678835
The Graco 16X904 Coupled Hose is a durable 3/8-inch high-pressure hose designed for reliable materia...
94
108
Item
Graco 16X385 Front Plate for 5900 PC II Sprayer
16X385
633955569102
The Graco 16X385 Front Plate is an OEM replacement front housing designed for 5900 PC II sprayers, e...
108
109
Item
Graco 118494 Airless Sprayer Suction Hose Packing O-Ring
118494
633955032675
The Graco 118494 O-Ring Packing ensures a tight seal in the suction hose connection for consistent s...
109
110
Item
Graco 17E926 Ultra Iron Series Label
17E926
755652849766
Graco 17E926 Ultra Iron Series Label — high‑quality branding label for the Ultra Iron series s...
110
112
Item
Graco 276980 Grommet Cover
276980
633955058651
The Graco 276980 Grommet Cover protects wiring and component openings on sprayer motor and drive ass...
112
117
Item
Graco 187437 Torque Label
187437
633955997509
OEM Graco 187437 Torque Label — essential torque reference display for proper operation.
Bran...
117
124
Item
Graco 119250 Shoulder Screw
119250
633955058644
The Graco 119250 Shoulder Screw ensures precise alignment and reliable performance in Graco spray sy...
124
126
Item
Graco 15D088 Motor Fan
15D088
633955031562
The Graco 15D088 Motor Fan cools your sprayer motor, preventing overheating and ensuring reliable op...
126
127
Item
Graco 115477 Pan Head Torx Screw
115477
633955930179
The Graco 115477 Pan Head Torx Screw is an OEM fastener designed for securing panels, guards, and mo...
127
159
Item
Graco 278075 Wire Bracket
278075
633955473188
Secures and organizes internal wiring in compatible Graco airless sprayers, preventing movement and ...
159
160
Item
Graco 15Y118 Made in the USA Label
15Y118
633955046351
A Genuine OEM Replacement Part
Graco 15Y118 Made in the USA Label is an authentic OEM decal used to...
160
