Graco Mark IV Hi-Boy Sprayer Parts List

Graco Mark IV Hi-Boy Sprayer Parts List
Graco 253132 Tube Repair Kit

Item No: -

Part Number: 253132

UPC Number: 633955139916

$26.78
QTY:
Graco 15C753 Torx Hexagonal Washer Machine Screw

Item No: 6

Part Number: 15C753

UPC Number: 633955030534

$3.73
QTY:
Graco 15E891 Axle Clip

Item No: 8

Part Number: 15E891

UPC Number: 633955088597

$4.79
QTY:
Graco 156306 Flat Washer

Item No: 10

Part Number: 156306

UPC Number: 633955237209

$23.94
QTY:
Graco 119420 Pneumatic Wheel

Item No: 11

Part Number: 119420

UPC Number: 633955036376

$72.07
QTY:
Graco 106115 Lock Spring Washer (Hi-Collar)

Item No: 12

Part Number: 106115

UPC Number: 633955618664

$9.81
QTY:
Graco 17E788 Cap Screw

Item No: 14

Part Number: 17E788

UPC Number: 755652813491

$2.60
QTY:
Graco 15C871 Leg Cap

Item No: 17

Part Number: 15C871

UPC Number: 633955031371

$5.99
QTY:
Graco 109032 Pan Head Machine Screw

Item No: 18

Part Number: 109032

UPC Number: 633955196346

$9.81
QTY:
Graco 116038 Wave Spring Washer

Item No: 22

Part Number: 116038

UPC Number: 633955947979

$14.45
QTY:
Graco 111040 Nylock lock nut

Item No: 24

Part Number: 111040

UPC Number: 633955382473

$8.83
QTY:
Graco 114672 Thrust Washer

Item No: 28

Part Number: 114672

UPC Number: 633955886070

$3.73
QTY:
Graco 114699 Thrust Washer

Item No: 30

Part Number: 114699

UPC Number: 633955875463

$3.73
QTY:
Graco 118444 Screw

Item No: 31

Part Number: 118444

UPC Number: 633955028999

$3.73
QTY:
Graco 116191 Thrust Washer

Item No: 36

Part Number: 116191

UPC Number: 633955980389

$4.99
QTY:
Graco 100057 Screw

Item No: 37

Part Number: 100057

UPC Number: 633955316812

$9.81
QTY:
Graco 196178 Nipple Adapter

Item No: 41

Part Number: 196178

UPC Number: 633955961678

$8.29
QTY:
Graco 176817 Retaining Spring

Item No: 43

Part Number: 176817

UPC Number: 633955053977

$7.31
QTY:
Graco 176818 Straight Pin

Item No: 44

Part Number: 176818

UPC Number: 633955509962

$14.11
QTY:
Graco 189920 Inlet Strainer/Filter (Threaded)

Item No: 48

Part Number: 189920

UPC Number: 633955094086

$19.14
QTY:
Graco 24V023 Cover Repair Kit

Item No: 51

Part Number: 24V023

UPC Number: 633955000766

$39.20
QTY:
Graco 16C457 Pail Hanger

Item No: 55

Part Number: 16C457

UPC Number: 633955570030

$32.34
QTY:
Graco 17A257 Pump Jam Nut

Item No: 56

Part Number: 17A257

UPC Number: 633955483965

$15.30
QTY:
Graco 287281 Motor Shield Repair Kit

Item No: 58

Part Number: 287281

UPC Number: 633955035188

$74.62
QTY:
Graco 287282 Motor Shield Repair Kit

Item No: 58a

Part Number: 287282

UPC Number: 633955035331

$74.62
QTY:
Graco 24Y429 Frame

Item No: 62

Part Number: 24Y429

UPC Number: 755652285021

Graco 24Y429 Frame, 695/795 Hi Boy

$418.38
QTY:
Graco 17E745 Front Label

Item No: 71

Part Number:

UPC Number:

$15.96
QTY:
Graco 17E744 Side Label

Item No: 72

Part Number: 17E744

UPC Number: 755652835271

$15.96
QTY:
Graco 17E746 Brand Label

Item No: 72a

Part Number: 17E746

UPC Number: 755652835295

$15.96
QTY:
Graco 248214 Intake Tube Repair Kit

Item No: 76

Part Number: 248214

UPC Number: 633955047457

$57.65
QTY:
Graco 278204 Drain Line Clip

Item No: 77

Part Number: 278204

UPC Number: 633955570047

$13.22
QTY:
Graco 24V026 Bearing Housing Kit

Item No: 83

Part Number: 24V026

UPC Number: 633955394315

$366.91
QTY:
Graco 257185 Motor Repair Kit C104

Item No: 84

Part Number: 257185

UPC Number: 633955473232

$1003.59
QTY:
Graco 257186 Motor Repair Kit C104

Item No: 84a

Part Number: 257186

UPC Number: 633955473256

$1222.48
QTY:
Graco 241008 Connecting Rod Replacement Kit

Item No: 85

Part Number: 241008

UPC Number: 633955866188

$218.18
QTY:
Graco 241920 Threaded Deflector

Item No: 87

Part Number: 241920

UPC Number: 633955910379

$4.10
QTY:
Graco 287289 Gear Repair Kit

Item No: 89

Part Number: 287289

UPC Number: 633955039841

$215.94
QTY:

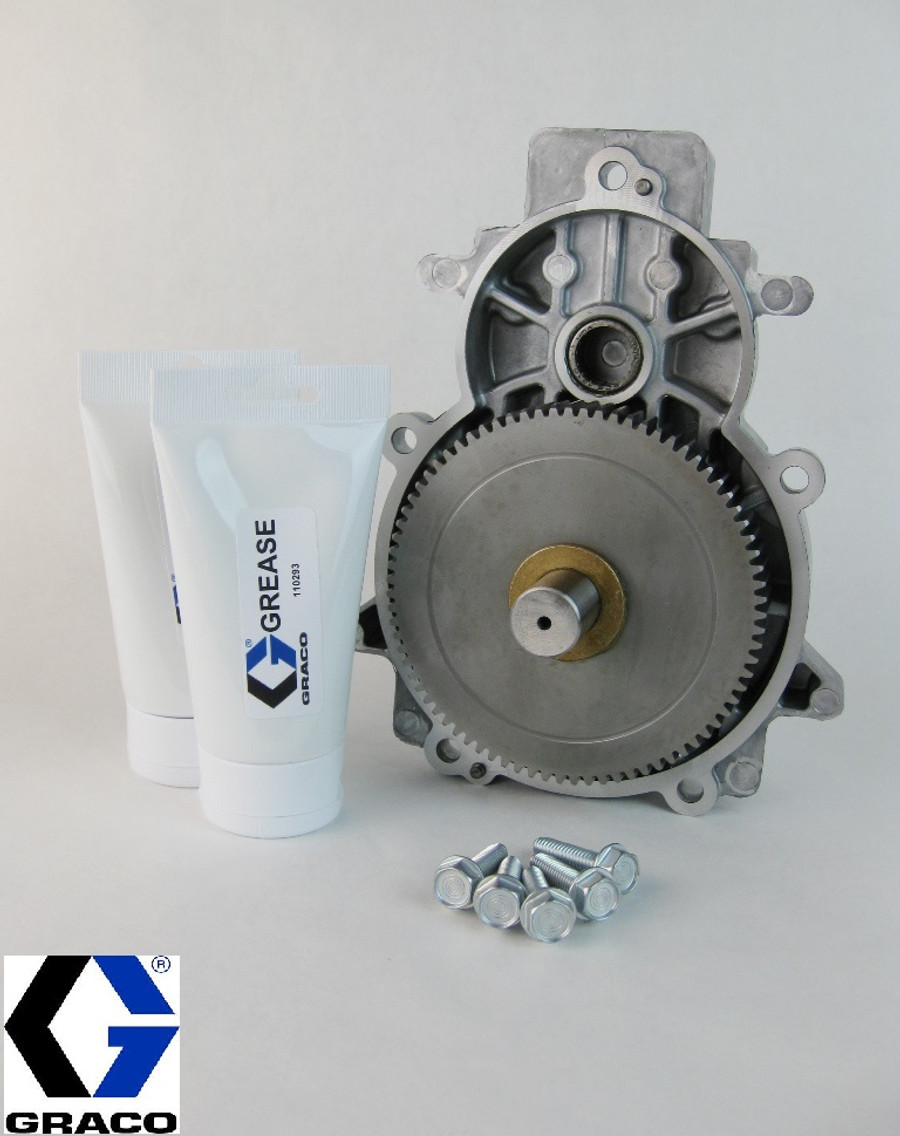

Graco 287283 Drive Housing Repair Kit

Item No: 90

Part Number: 287283

UPC Number: 633955035430

$360.74
QTY:
Graco 287284 Drive Housing Repair Kit

Item No: 90i

Part Number: 287284

UPC Number: 633955036949

$342.22
QTY:
Graco 107089 Race Thrust Washer

Item No: 90a

Part Number: 107089

UPC Number: 633955622951

$8.85
QTY:
Graco 17H828 Mark IV Standard Pump Kit

Item No: 91

Part Number: 17H828

UPC Number: 755652850434

$823.20
QTY:
Graco 244240 Hi Return Line Repair Kit

Item No: 93

Part Number: 244240

UPC Number: 633955963597

$64.26
QTY:
Graco 16X904 Coupled Hose

Item No: 94

Part Number: 16X904

UPC Number: 633955678835

$81.77
QTY:
Graco 287489 Hi Cart Handle Assembly

Item No: 99

Part Number: 287489

UPC Number: 633955195936

$142.02
QTY:
Graco 16X695 Cart Stand Hanger (695-795)

Item No: 105

Part Number: 16X695

UPC Number: 633955569195

$28.42
QTY:
Graco 15C982 Cart Camera

Item No: 106

Part Number: 15C982

UPC Number: 633955031524

$10.37
QTY:
Graco 114531 Hexagonal Head Washer Machined Screw

Item No: 107

Part Number: 114531

UPC Number: 633955801691

$3.85
QTY:
Graco 16X770 Shield Pump Rod

Item No: 108

Part Number: 16X770

UPC Number: 633955676282

$7.51
QTY:
Graco 118494 O-Ring Packing

Item No: 109

Part Number: 118494

UPC Number: 633955032675

$3.73
QTY:
Graco 187437 Torque Label

Item No: 117

Part Number:

UPC Number:

$8.51
QTY:
Graco 276980 Grommet Cover

Item No: 123

Part Number: 276980

UPC Number: 633955058651

$3.73
QTY:
Graco 119250 Shoulder Screw

Item No: 124

Part Number: 119250

UPC Number: 633955058644

$3.73
QTY:
Graco 15D088 Motor Fan

Item No: 126

Part Number: 15D088

UPC Number: 633955031562

$33.32
QTY:
Graco 115477 Pan Head Torx Screw

Item No: 127

Part Number: 115477

UPC Number: 633955930179

$4.41
QTY:
Graco 222385 Med alert Safety Label

Item No: 128

Part Number: 222385

UPC Number: 633955309135

$5.00
QTY:
Graco 278075 Wire Bracket

Item No: 159

Part Number: 278075

UPC Number: 633955473188

$10.26
QTY:
Graco 15Y118 Label (made in the USA)

Item No: 160

Part Number: 15Y118

UPC Number: 633955046351

$8.51
QTY:

The Graco Mark IV Hi-Boy Sprayer series is designed to increase the productivity of professional contractors by saving time and money while giving the opportunity to cover more square footage per day. We sell the components or parts of this machine online at unbelievable prices. Patronize us today and get OEM replacement parts for your machine!!
