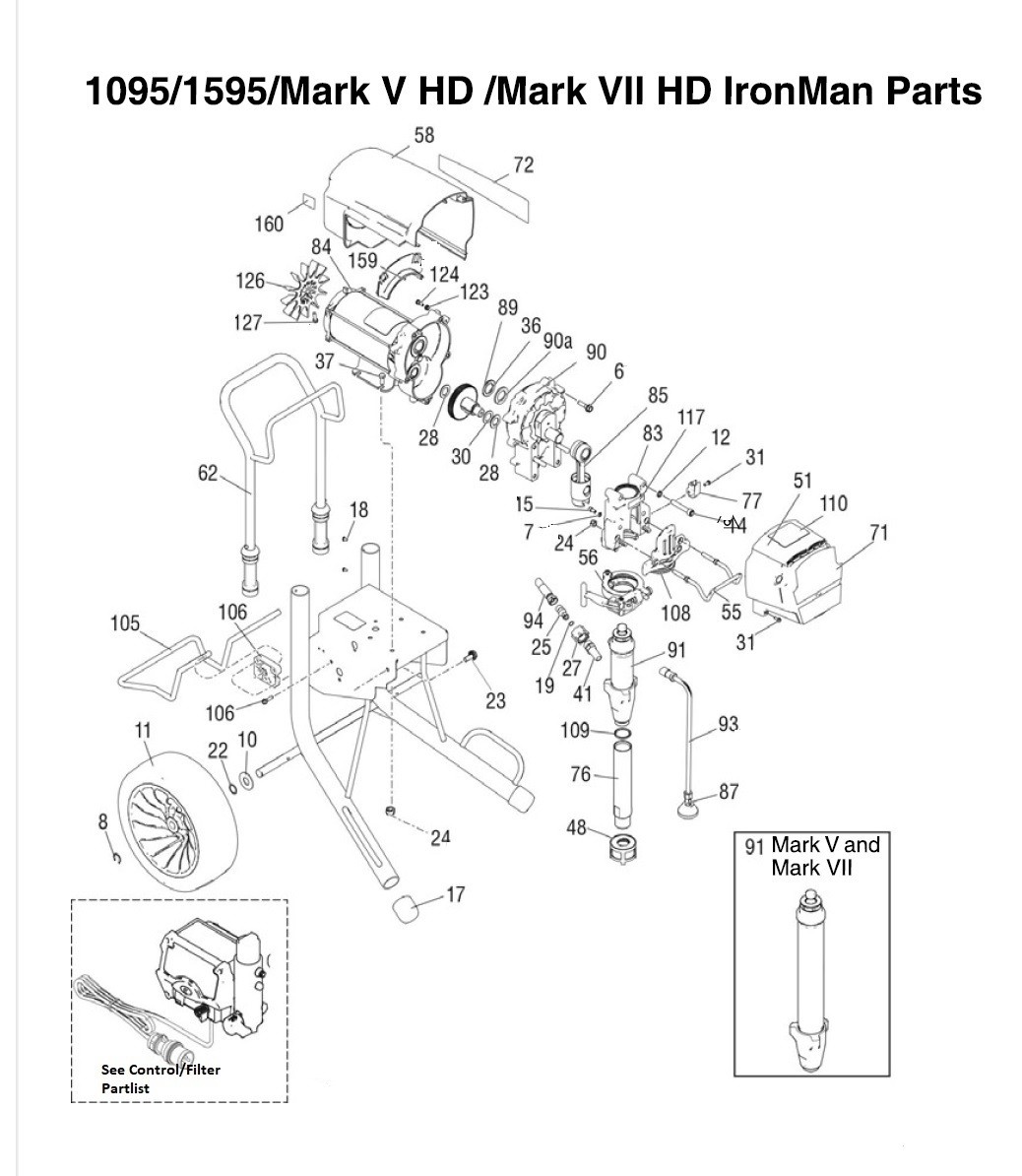

Graco Mark VII HD IronMan Sprayer Parts List

Graco 15C753 Torx Hexagonal Washer Machine Screw

Item No: 6

Part Number: 15C753

UPC Number: 633955030534

$3.73

QTY:

Graco 105510 Spring Lock Washer (Hi-Collar)

Item No: 7

Part Number: 105510

UPC Number: 633955507043

$9.81

QTY:

Graco 15E891 Axle Clip

Item No: 8

Part Number: 15E891

UPC Number: 633955088597

$4.79

QTY:

Graco 156306 Flat Washer

Item No: 10

Part Number: 156306

UPC Number: 633955237209

$23.94

QTY:

GRACO 17E687 13 Inch Polyurethane Tire (Black)

Item No: 11

Part Number: 17E687

UPC Number: 755652829485

$64.26

QTY:

Graco 106115 Lock Spring Washer (Hi-Collar)

Item No: 12

Part Number: 106115

UPC Number: 633955618664

$9.81

QTY:

Graco 17E789 SCH Cap Screw 3/8 X 2.25 Sst

Item No: 14

Part Number: 17E789

UPC Number: 755652813507

$3.86

QTY:

Graco 101550 SCH Cap Screw

Item No: 15

Part Number: 101550

UPC Number: 633955502000

$21.24

QTY:

Graco 276974 Leg Cap

Item No: 17

Part Number: 276974

UPC Number: 633955044432

$3.35

QTY:

Graco 102982 O-Ring Packing

Item No: 19

Part Number: 102982

UPC Number: 633955081093

$10.03

QTY:

Graco 116038 Wave Spring Washer

Item No: 22

Part Number: 116038

UPC Number: 633955947979

$14.45

QTY:

Graco 117791 Tri Lobe Cap Screw

Item No: 23

Part Number: 117791

UPC Number: 633955025677

$1.00

QTY:

Graco 111040 Nylock lock nut

Item No: 24

Part Number: 111040

UPC Number: 633955382473

$8.83

QTY:

Graco 16X833 Quick Disconnect fitting 3/8 Npsm

Item No: 25

Part Number: 16X833

UPC Number: 633955678309

$22.37

QTY:

Graco 120583 Hand Nut

Item No: 27

Part Number: 120583

UPC Number: 633955231368

$45.45

QTY:

Graco 114672 Thrust Washer

Item No: 28

Part Number: 114672

UPC Number: 633955886070

$3.73

QTY:

Graco 114699 Thrust Washer

Item No: 30

Part Number: 114699

UPC Number: 633955875463

$3.73

QTY:

Graco 118444 Screw

Item No: 31

Part Number: 118444

UPC Number: 633955028999

$3.73

QTY:

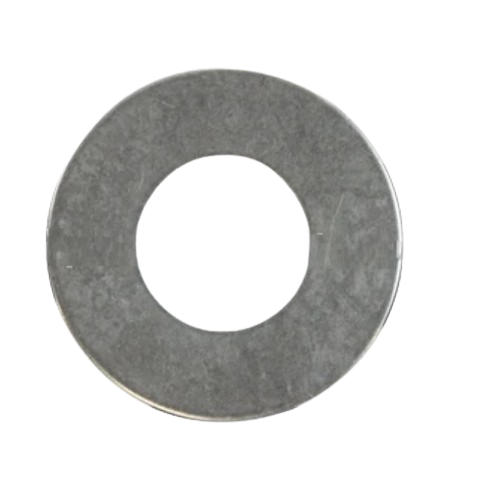

Graco 116192 Thrust Washer

Item No: 36

Part Number: 116192

UPC Number: 633955698307

$5.99

QTY:

Graco 100057 Screw

Item No: 37

Part Number: 100057

UPC Number: 633955316812

$9.81

QTY:

Graco 16X834 Quick Detach Pump Fitting - 3/8 Npt

Item No: 41

Part Number: 16X834

UPC Number: 633955678316

Graco 16X834 Quick Detach Pump Fitting - 3/8 Npt

$51.50

QTY:

Graco 15V573 Treaded Crushproof Inlet Strainer

Item No: 48

Part Number: 15V573

UPC Number: 633955416550

$30.38

QTY:

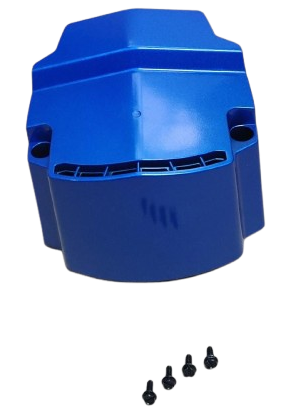

Graco 24V024 Cover Repair Kit

Item No: 51

Part Number: 24V024

UPC Number: 633955000827

$40.87

QTY:

Graco 16C457 Pail Hanger

Item No: 55

Part Number: 16C457

UPC Number: 633955570030

$32.34

QTY:

Graco 16X324 Pump Large Clamp

Item No: 56

Part Number: 16X324

UPC Number: 633955682061

$347.51

QTY:

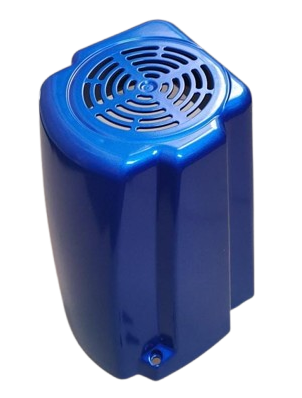

Graco 287282 Motor Shield Repair Kit

Item No: 58

Part Number: 287282

UPC Number: 633955035331

$74.62

QTY:

Graco 24Y428 Frame

Item No: 62

Part Number: 24Y428

UPC Number: 755652285014

Graco 24Y428 Frame, 1095/Mark X Hi Boy

$573.03

QTY:

Graco 17E750 Brand Label

Item No: 72

Part Number: 17E750

UPC Number: 755652835332

$15.96

QTY:

Graco 248215 Intake Tube

Item No: 76

Part Number: 248215

UPC Number: 633955047495

$59.31

QTY:

Graco 16X203 Drain Line Clip

Item No: 77

Part Number: 16X203

UPC Number: 633955569058

$8.13

QTY:

Graco 24V088 Bearing Housing Repair Kit

Item No: 83

Part Number: 24V088

UPC Number: 633955376557

$1177.05

QTY:

Graco 257188 Motor Repair Kit - C104

Item No: 84

Part Number: 257188

UPC Number: 633955473294

$1462.02

QTY:

Graco 24V085 Connecting Rod Repair Kit

Item No: 85

Part Number: 24V085

UPC Number: 633955394506

$344.86

QTY:

Graco 241920 Threaded Deflector

Item No: 87

Part Number: 241920

UPC Number: 633955910379

$4.10

QTY:

Graco 287290 Combination Gear

Item No: 89

Part Number: 287290

UPC Number: 633955040090

$231.62

QTY:

Graco 24M417 Drive Housing

Item No: 90

Part Number: 24M417

UPC Number: 633955661073

$565.35

QTY:

Graco 194173 Washer

Item No: 90a

Part Number: 194173

UPC Number: 633955886179

$5.42

QTY:

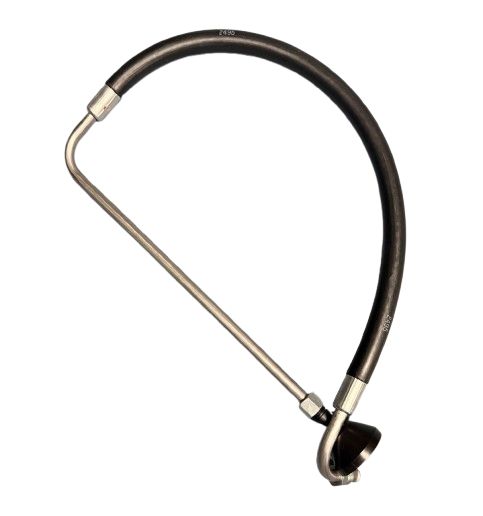

Graco 244240 Hi Return Line Repair Kit

Item No: 93

Part Number: 244240

UPC Number: 633955963597

$64.26

QTY:

Graco 24V029 Coupled Hose Repair Kit - 1/2"

Item No: 94

Part Number: 24V029

UPC Number: 633955378155

$132.41

QTY:

Graco 16X385 Front Plate

Item No: 108

Part Number: 16X385

UPC Number: 633955569102

$358.97

QTY:

Graco 118494 O-Ring Packing

Item No: 109

Part Number: 118494

UPC Number: 633955032675

$3.73

QTY:

GRACO 17E926 Ultra Iron Series Label

Item No: 110

Part Number: 17E926

UPC Number: 755652849766

$15.96

QTY:

Graco 187437 Torque Label

Item No: 117

Part Number:

UPC Number:

$8.51

QTY:

Graco 276980 Grommet Cover

Item No: 123

Part Number: 276980

UPC Number: 633955058651

$3.73

QTY:

Graco 119250 Shoulder Screw

Item No: 124

Part Number: 119250

UPC Number: 633955058644

$3.73

QTY:

Graco 15D088 Motor Fan

Item No: 126

Part Number: 15D088

UPC Number: 633955031562

$33.32

QTY:

Graco 115477 Pan Head Torx Screw

Item No: 127

Part Number: 115477

UPC Number: 633955930179

$4.41

QTY:

Graco 222385 Med alert Safety Label

Item No: 128

Part Number: 222385

UPC Number: 633955309135

$5.00

QTY:

Graco 278075 Wire Bracket

Item No: 159

Part Number: 278075

UPC Number: 633955473188

$10.26

QTY:

Graco 15Y118 Label (made in the USA)

Item No: 160

Part Number: 15Y118

UPC Number: 633955046351

$8.51

QTY:

The Graco Mark VII HD IronMan Sprayer is a machine that offers high flow rate in order to finish jobs faster. We have in our stock high quality replacement parts for your machine. Patronize us today to help in giving you the best quality spare parts available online. Boost your productivity with our products Now!! You can call or chat us online daily!
