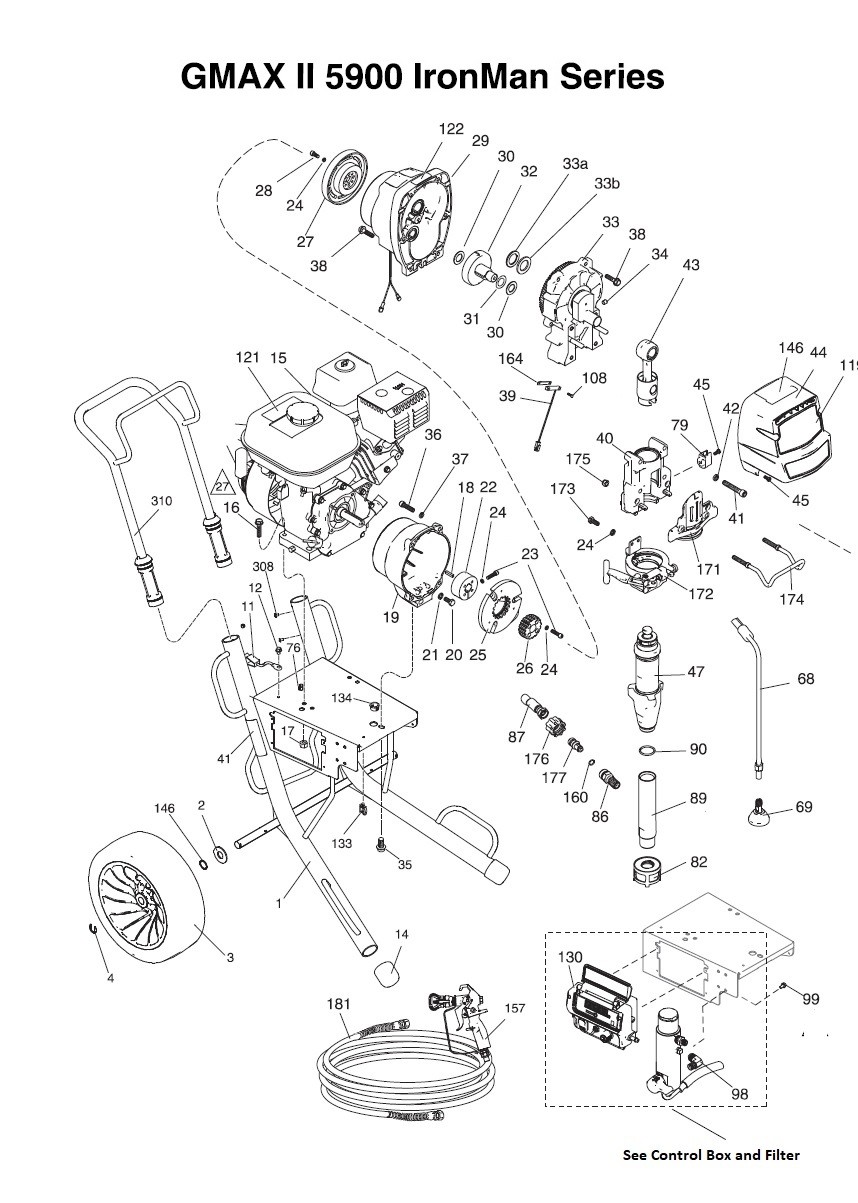

Graco GMAX II 5900 IronMan Series Gas Airless Sprayer Parts List

Graco 287370 Gmax 5900/7900 Hi Frame (Cart)

Item No: 1

Part Number: 287370

UPC Number: 633955088030

$568.76

Graco 156306 Flat Washer

Item No: 2

Part Number: 156306

UPC Number: 633955237209

$23.94

Graco 122267 Foam Wheel

Item No: 3

Part Number: 122267

UPC Number: 633955045859

$162.62

Graco 120211 Retaining E-Ring

Item No: 4

Part Number: 120211

UPC Number: 633955135109

$8.62

Graco 237686 Wire Ground Assembly With Clamp

Item No: 11

Part Number: 237686

UPC Number: 633955741928

$88.24

Graco 112798 Hexagonal Thread Forming Screw

Item No: 12

Part Number: 112798

UPC Number: 633955742567

$4.79

Graco 116080 Honda Gas Engine 6.5Hp

Item No: 14

Part Number: 116080

UPC Number: 633955788794

$1453.76

Graco 116080 Honda Gas Engine 6.5Hp

Item No: 15

Part Number: 116080

UPC Number: 633955788794

$1453.76

Graco 110837 Screw

Item No: 16

Part Number: 110837

UPC Number: 633955268005

$8.98

Graco 110838 Lock Nut

Item No: 17

Part Number: 110838

UPC Number: 633955577107

$10.64

Graco 183401 Parallel Key

Item No: 18

Part Number: 183401

UPC Number: 633955395282

Graco 15E277 Machined Clutch Housing 5900/7900

Item No: 19

Part Number: 15E277

UPC Number: 633955037847

$229.82

Graco 108842 Screw - 5/16 - 24X3/4

Item No: 20

Part Number: 17W074

UPC Number: 755652798217

Graco 100214 Lock Washer

Item No: 21

Part Number: 100214

UPC Number: 633955064911

Graco 193680 Shaft Collar

Item No: 22

Part Number: 193680

UPC Number: 633955855496

$173.82

Graco 108803 Screw

Item No: 23

Part Number: 108803

UPC Number: 633955082199

Graco 105510 Spring Lock Washer (Hi-Collar)

Item No: 24

Part Number: 105510

UPC Number: 633955507043

Graco 101682 Screw Cap

Item No: 28

Part Number: 101682

UPC Number: 633955444584

$28.60

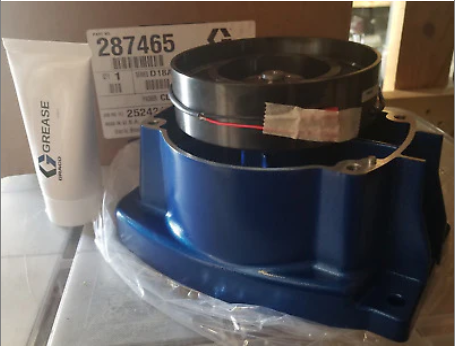

Graco 287465 Housing Pinion Kit for 5900

Item No: 29

Part Number: 287465

UPC Number: 633955089822

$818.57

Graco 114672 Thrust Washer

Item No: 30

Part Number: 114672

UPC Number: 633955886070

Graco 114699 Thrust Washer

Item No: 31

Part Number: 114699

UPC Number: 633955875463

Graco 287460 Combination Gear Repair Kit

Item No: 32

Part Number: 287460

UPC Number: 633955089792

$220.42

Graco 287469 Drive Housing Repair Kit 5900

Item No: 33

Part Number: 287469

UPC Number: 633955089860

$1040.76

Graco 116192 Thrust Washer

Item No: 33a

Part Number: 116192

UPC Number: 633955698307

$5.99

Graco 194173 Washer

Item No: 33b

Part Number: 194173

UPC Number: 633955886179

$5.42

Graco 116618 Magnet

Item No: 34

Part Number: 116618

UPC Number: 633955833807

$10.64

Graco 112395 Screw

Item No: 35

Part Number: 112395

UPC Number: 633955589308

$4.54

Graco 102962 SCH Cap Screw 5/16-18 X 1.250

Item No: 36

Part Number: 102962

UPC Number: 633955373204

$8.51

Graco 104008 Spring Lock Washer

Item No: 37

Part Number: 104008

UPC Number: 633955131491

$16.82

Graco 15C753 Torx Hexagonal Washer Machine Screw

Item No: 38

Part Number: 15C753

UPC Number: 633955030534

Graco 119562 Reed Switch With Connector

Item No: 39

Part Number: 119562

UPC Number: 633955089495

Graco 119562 Reed Switch With Connector

$48.67

Graco 17E789 SCH Cap Screw 3/8 X 2.25 Sst

Item No: 41

Part Number: 17E789

UPC Number: 755652813507

$3.86

Graco 106115 Lock Spring Washer (Hi-Collar)

Item No: 42

Part Number: 106115

UPC Number: 633955618664

Graco 24V085 Connecting Rod Repair Kit

Item No: 43

Part Number: 24V085

UPC Number: 633955394506

$344.86

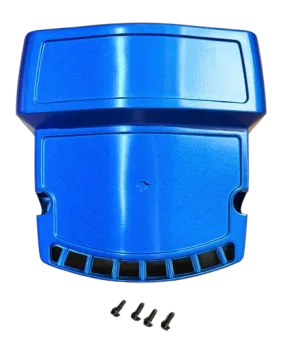

Graco 16Y748 Drive Cover Repair Kit 5900

Item No: 44

Part Number: 16Y748

UPC Number: 633955005358

$88.48

Graco 118444 Screw

Item No: 45

Part Number: 118444

UPC Number: 633955028999

Graco 17H826 Endurance Vortex MaxLife Extreme Piston Pump

Item No: 47

Part Number: 17H826

UPC Number: 755652850540

Graco 17H826 Endurance Piston Pump is a replacement pump designed for the Ultra Max II 1095/1595 Iro...

$1676.78

Graco 244240 Hi Return Line Repair Kit

Item No: 68

Part Number: 244240

UPC Number: 633955963597

$64.26

Graco 241920 Threaded Deflector

Item No: 69

Part Number: 241920

UPC Number: 633955910379

$4.10

Graco 114678 Strain Relief Bushing

Item No: 76

Part Number: 114678

UPC Number: 633955886087

$4.79

Graco 16X203 Drain Line Clip

Item No: 79

Part Number: 16X203

UPC Number: 633955569058

$8.13

Graco 15V573 Treaded Crushproof Inlet Strainer

Item No: 82

Part Number: 15V573

UPC Number: 633955416550

$30.38

Graco 16Y579 Quick Detach Pump Fitting

Item No: 86

Part Number: 16Y579

UPC Number: 633955683983

$30.48

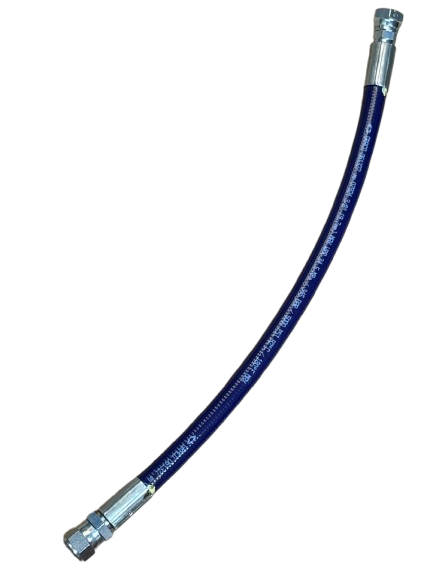

Graco 16X904 Coupled Hose

Item No: 87

Part Number: 16X904

UPC Number: 633955678835

$81.77

Graco 248215 Intake Tube

Item No: 89

Part Number: 248215

UPC Number: 633955047495

$59.31

Graco 118494 O-Ring Packing

Item No: 90

Part Number: 118494

UPC Number: 633955032675

Graco 125926 90 Degrees Elbow Fitting

Item No: 98

Part Number: 125926

UPC Number: 633955647992

$22.47

Graco 113161 Screw

Item No: 99

Part Number: 113161

UPC Number: 633955824812

$11.20

Graco 114528 Pan Head Machined Phillips Screw

Item No: 108

Part Number: 114528

UPC Number: 633955841710

Graco 114528 Pan Head Machined Phillips Screw

$6.30

Graco 16X349 Brand Label

Item No: 119

Part Number: 16X349

UPC Number: 633955678484

$15.96

Graco 15F638 Safety Label

Item No: 120

Part Number: 15F638

UPC Number: 633955041431

$5.00

Graco 194126 F&E Warning Safety Label

Item No: 121

Part Number: 194126

UPC Number: 633955871410

$5.00

Graco 290228 Burn Warning Safety Label

Item No: 122

Part Number: 290228

UPC Number: 633955705739

$5.00

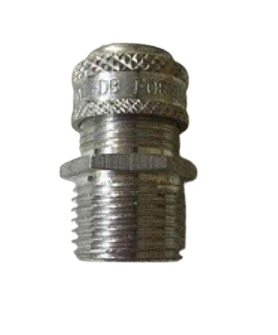

Graco 119569 Strain Relief Bushing

Item No: 127

Part Number: 119569

UPC Number: 633955037076

$7.69

Graco 16X821 Led Control Box

Item No: 130

Part Number: 16X821

UPC Number: 633955678415

Graco 16X821 Led Control Box

$887.95

Graco 114687 Clip Retainer

Item No: 133

Part Number: 114687

UPC Number: 633955871496

Graco 15F354 Oil Funnel

Item No: 134

Part Number: 15F354

UPC Number: 633955097018

Graco 15F354 Funnel, Oil

$11.76

Graco 116038 Wave Spring Washer

Item No: 143

Part Number: 116038

UPC Number: 633955947979

$14.45

Graco 17Y043 Contractor PC Airless Spray Gun

Item No: 157

Part Number: 17Y043

UPC Number: 755652815723

$336.42

Graco 17E935 Iron Label Gmax Series

Item No: 146

Part Number: 17E935

UPC Number: 755652849827

Graco 17E935 Iron Label Gmax Series

$15.96

Graco 107505 O-Ring Packing

Item No: 160

Part Number: 107505

UPC Number: 633955305229

$9.95

Graco 15F947 Shield, Magnetic

Item No: 164

Part Number: 15F947

UPC Number: 633955073722

Graco 15F947 Shield, Magnetic

$8.82

Graco 16X385 Front Plate

Item No: 171

Part Number: 16X385

UPC Number: 633955569102

$358.97

Graco 16X324 Pump Large Clamp

Item No: 172

Part Number: 16X324

UPC Number: 633955682061

$347.51

Graco 101550 SCH Cap Screw

Item No: 173

Part Number: 101550

UPC Number: 633955502000

$21.24

Graco 16C457 Pail Hanger

Item No: 174

Part Number: 16C457

UPC Number: 633955570030

$32.34

Graco 111040 Nylock lock nut

Item No: 175

Part Number: 111040

UPC Number: 633955382473

$8.83

Graco 120583 Hand Nut

Item No: 176

Part Number: 120583

UPC Number: 633955231368

$45.45

Graco 16X833 Quick Disconnect fitting 3/8 Npsm

Item No: 177

Part Number: 16X833

UPC Number: 633955678309

$22.37

Graco 240797 BlueMax II Airless Hose

Item No: 180

Part Number: 240797

UPC Number: 633955862593

$192.77

Graco 240794 BlueMax II Airless Hose

Item No: 181

Part Number: 240794

UPC Number: 633955862562

$95.00

Graco 164672 Adapter

Item No: 182

Part Number: 164672

UPC Number: 633955629363

$29.99

Graco 189018 Swivel Assembly

Item No: 184

Part Number: 189018

UPC Number: 633955076594

$105.19

Graco 108795 Pan Head Machined Screw

Item No: 308

Part Number: 108795

UPC Number: 633955512788

$38.44

Graco 24A250 Handle Assembly

Item No: 310

Part Number: 24A250

UPC Number: 633955350915

$91.01
