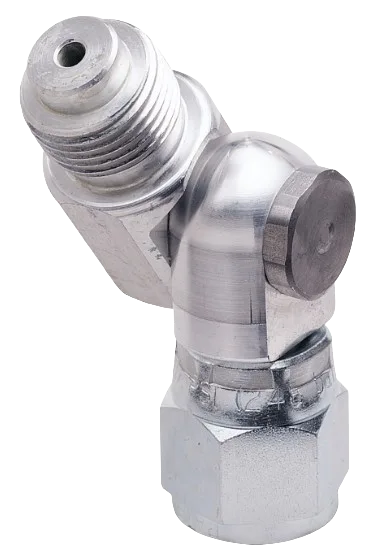

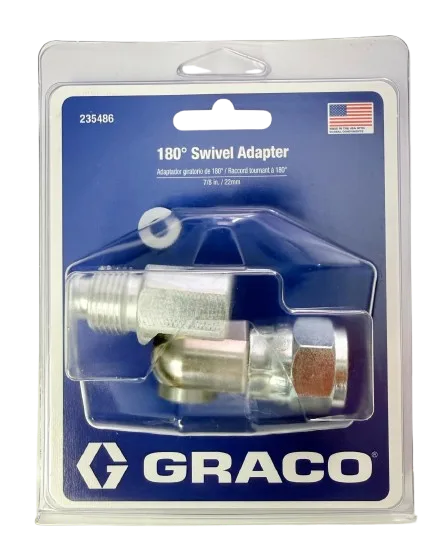

Graco 235486 180 Degree Directional Spray Adapter

Graco 235486 180 Degree Easy Turn Directional Spray Adapter attaches to a Graco extension pole to spray at a variety of angles.

Graco 235486 Swivel is a convenient spray nozzle designed for easy turning and adjustable direction. It can be attached to the end of a Graco extension to spray at various angles. This versatile nozzle allows operators to comfortably spray walls, angled ceilings, flat ceilings, and floors when using an extension. The angle remains stable during spraying but can be easily adjusted to change the spray pattern as needed.

Graco 235486 Swivel is compatible with any Graco high-pressure gun or extension equipped with the standard RAC IV, RAC V, RAC X, or dripless tip guard. To install it, simply remove the tip guard from the spray gun, attach the easy-turn swivel, and then reattach the tip guard to the new swivel.

Please note that Graco 235486 Swivel is an OEM (Original Equipment Manufacturer) part manufactured by Graco. While aftermarket options may be available, using them can result in seal leakage under high pressure, leading to messy situations and wasted paint. To avoid such issues, it is recommended to purchase the OEM part.

Key specifications of Graco 235486 Swivel include:

•          Sprays at a variety of angles

•          180° swivel that attaches to tip extensions and heavy-duty extensions

•          Maximum Working Pressure: 3600 PSI

•          7/8" Thread Size
