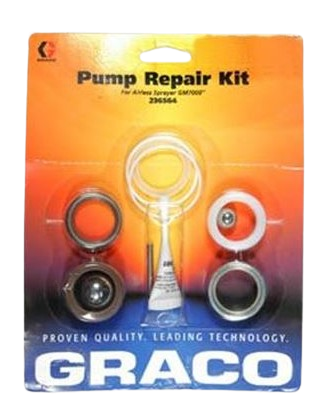

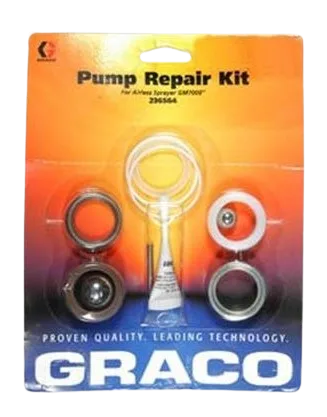

Graco 236564 Pump Repair Packing Kits
$123.41
$179.50
Save 31%
In Stock
The Graco 236564 Pump Repair Packing Kit is designed to restore the performance of your GM7000 pump by replacing worn packings and seals. Ideal for stopping leaks and regaining full pressure output.
- OEM Part Number: 236564
- Fits Graco GM7000 sprayer models
- Includes packings, O-rings, and seals for fluid section
- Restores pressure and reduces paint leakage
- Reliable OEM-grade quality and fit
Quantity
Genuine OEM Part
Fast Shipping (Order by 1 PM CST)
Easy Returns
Overview & Compatibility for Graco 236564 Pump Repair Packing Kits
Use this OEM kit to restore pressure and stop fluid-section leaks on select Graco GM-series airless sprayers. Check the compatible machines below before ordering.
Compatible Machines
This kit fits the following GM-series sprayers and variants:
- Graco GM7000 – Filter Left Side (Model 231327)
- Graco GM7000 – Hi-Boy Bare (Model 231326)
- Graco GM7000 – Hi-Boy Complete (Model 231327)
- Graco GM7000 – Lo-Boy (Model 231800)
Key Details
| OEM Part Number | 236564 |
|---|---|
| Kit Type | Pump Repair / Packing Kit for the fluid section |
| Primary Application | Refreshes internal packings/seals to restore prime, pressure, and reduce leakage |
| Typical Contents | Assorted packings, O-rings, check balls, and related seals (as specified by the GM7000 pump assembly) |
| When to Use | Loss of pressure, paint bypass/leak from pump, erratic spray, excessive wear in the fluid section |
| Compatibility Note | Verify your exact model/serial configuration in the owner’s manual before purchase |
Why Choose the Graco 236564 Pump Repair Packing Kits?
- OEM-grade sealing for reliable performance and spray pattern consistency
- Cost-effective restoration versus replacing the full pump assembly
- Downtime reduction with a targeted refresh of wear components
Installation & Care Tips
- Relieve pressure and follow GM7000 pump disassembly steps from the official manual
- Clean all mating surfaces; inspect the piston, seat, and rod for wear before reassembly
- Lubricate packings as recommended; do not over-tighten packing nuts
- Flush with appropriate solvent after reassembly and test at low pressure first
Frequently Asked Questions
It is specified for the Graco GM7000 family and its listed variants. For other sprayers, check the owner’s manual or parts list to confirm the exact packing kit P/N.
Persistent leaking from the pump, inability to maintain pressure, frequent cycling, or a rough/erratic spray pattern are common signs of worn packings and seals.
The kit includes the packings, O-rings, and related seals for the fluid section. Hardware or major metal pump parts (piston/rod/seat) are not typically included unless specified in the GM7000 parts list.
Yes—if you are comfortable servicing the pump and have the GM7000 manual. Follow all safety/pressure-relief steps. If unsure, consult a qualified service center to avoid damage or leaks.
Service life depends on materials sprayed, filtration, and maintenance. Proper cleaning and flushing after each use can significantly extend packing life.
