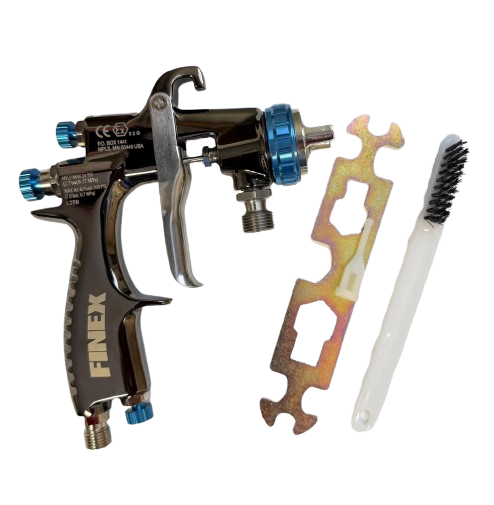

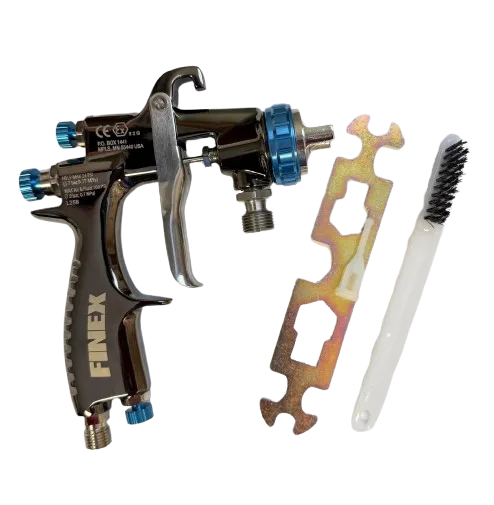

Graco 289248 Finex Air Spray Pressure Feed Gun

Graco 289248 Finex Air Spray Pressure Feed Gun - lightweight, fine-finish HVLP gun for pressure-fed setups. Includes a 1.2 mm needle/nozzle, non-bleeder air valve, and inlet “cheater” control for quick tuning.

Feed: Pressure-feed (remote cup/pressure pot or pump required)
Air inlet: 1/4" NPSM
Fluid inlet: 3/8" NPSM (female)
Best for: Cabinetry, furniture, metals, general industrial finishing
Compatible systems: Graco pressure pots/remote cups, diaphragm or piston feed pumps, booth/bench finishing setups

Retail Price: $351

You save: $27.2 (7.75%)

Our Price: $323.8

Based on 0 reviews

Description

Fine-Finish HVLP Pressure-Feed Spray Gun for Pro Results

Compatible Machines / Systems

Graco 289248 Finex Air Spray Pressure Feed Gun connects to any pressure-feed fluid source and compressed-air supply with matching thread sizes.

Graco pressure pots / remote cups (2 qt to multi-gallon tanks) with regulated fluid & air lines
Diaphragm or piston feed pumps configured for air spray / HVLP delivery
Booth or bench finishing systems with low-pressure regulated fluid supply
Circulating / batch systems using standard 1/4" air and 3/8" fluid connections

Overview

The Finex 289248 is a lightweight, ergonomic HVLP pressure-feed spray gun built for consistent fine-finish results on cabinetry, furniture, metals, and general industrial work. A factory-matched 1.2 mm needle/nozzle set delivers tight atomization, while the non-bleeder design and integrated “cheater” air-inlet adjustment help dial in material flow, fan pattern, and finish quality with minimal overspray.

Key Features

Pressure-feed HVLP gun for remote cup, pot, or pump supply
1.2 mm (0.047") needle/nozzle for fine atomization
Non-bleeder air valve & cheater air control at inlet for quick tweaks
Balanced, lightweight body to reduce fatigue in all-day production
Tool-less pattern, fluid, and air adjustments for rapid setup changes

Technical Specifications

Product	Graco 289248 Finex Air Spray Pressure Feed Gun
Spray Technology	HVLP, non-bleeder air valve
Feed Type	Pressure-feed (remote cup / pressure pot / pump)
Needle/Nozzle	1.2 mm (0.047") set installed
Air Inlet	1/4" NPSM
Fluid Inlet	3/8" NPSM (female)
Typical Uses	Wood finishes, lacquers, enamels, primers, light industrial coatings

What’s Included

Finex 289248 HVLP pressure-feed spray gun (non-bleeder)
1.2 mm needle/nozzle set (installed)
Air-inlet cheater adjustment

Usage Notes

Requires a remote fluid source (pressure cup/pot or pump) and clean, regulated shop air.
Verify thread sizes (1/4" air, 3/8" fluid) with your hoses/fittings before use.
Match needle/nozzle size to coating viscosity and desired finish quality.

Frequently Asked Questions

The 289248 is a pressure-feed model. It connects to a remote cup/pressure pot or pump via fluid and air lines-there is no gravity or suction cup on the gun body.

Match your hose ends to the gun’s 1/4" NPSM air inlet and 3/8" NPSM (female) fluid inlet. Use quality regulators and filters for best finish results.

Yes- Finex systems support multiple needle/nozzle sizes (sold separately). Choose based on coating viscosity and required film build.

The 289248 is a non-bleeder HVLP gun with an integrated cheater air-inlet control for quick adjustments.
